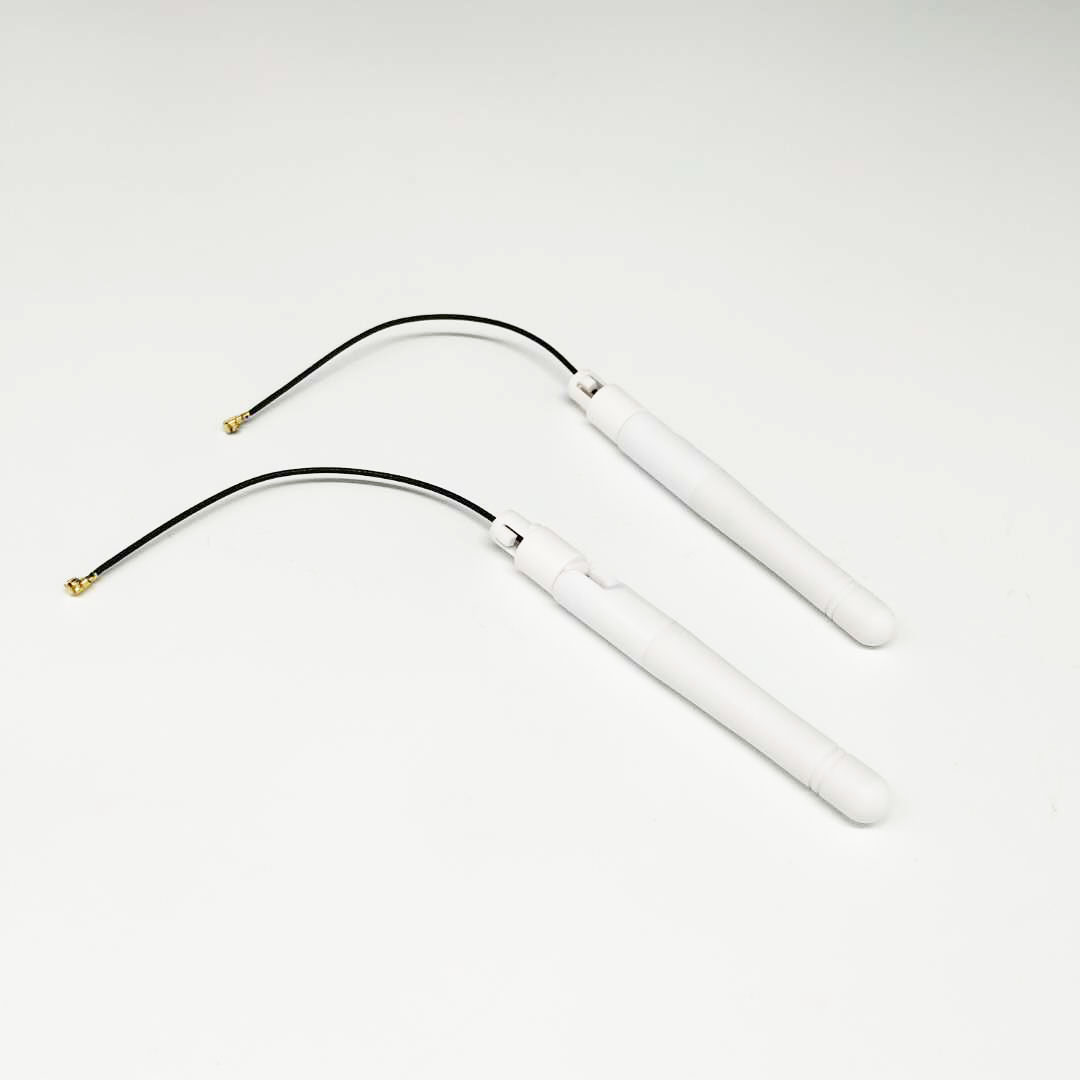

2dbi GSM GPRS Antenna 800-2100Mhz IPEX/UFL Connector Rubber Indoor Omni-directional Antenna
| Electrical characteristics and Mechanical |
| Frequency Range | 800-2100Mhz/custom |
| Gain | 2DBI |
| Input Impendance | 50 ohm |
| Connector | IPEX/ or others |
| Cable length | Custom |
| Environment |
| Working Humidity | 20~80% |
| Maximum Input Impedance | 50W |
| Working Temperature | -40ºC~+85ºC |
| Environment performance test |
| Project | Test condition | Test results |
| Storage environment | Test temperature, humidity, pressure without stated condition as follwings:1.Temperature: -30℃～+80℃;2.Relative humidity: 45%-85%;3,Pressure: 86kpa-106kpa | Electrical and mechanical performance normal |
| High and low temperature test | Having 5 times cycle between -40℃ to 70℃,Then in common condition 1-2 hours test exterior quality. | Measurement satisfied with electrical and mechanical performance normal. |
| Resistance constant hot and humid test | Relative humidity:95±3%,Test temperature: 40℃,last 2 hours ,put it after 5 min test the electrical function .Test products during common condition 1-2 hours ,Then test exterior quality. | Measurement satisfied with electrical and mechanical performance normal. |
| Vibration test | Vibrate Frequency:10-55HZ;
Distance :0.35mm;Acceleration :50.0m/s;Sweep frequency cycle:30 times | Vibration test |
| Fall test | From 1m height fall down 3 times freely (vertical direction) | Electrical and mechanical performance normal |
Features:
1. it have several type :2dbi,3dbi,5dbi,7dbi,9dbi...
2. the connector can be F,SMA ,MCX.IPEX...
3. The antenna can be customized be GSM ,GPRS,LTE,WIFI ...
Main Export Markets:
| North America South America Western Europe
Eastern Europe Eastern Asia Southeast Asia
|
Returns:
► We do our best to serve our customers the best that we can.
► The buyer should make sure that the items returned are in their original conditions.If the items are
damaged or lost when they are returned.the buyer will be responsible for such damage or loss, and we will
not give the buyer a full refund. The buyer should try to file a claim with the logistic company to recover
the cost of damage or loss.
► The buyer will be responsible for the shipping fees to return the items.
Q :How can I get the sample to check your quality?
A :After price confirmation, you can require for samples to check our product’s quality. If you just need a
sample to check the design and quality. We will provide you sample for free as long as you afford the
express freight.
Q :What can I get the price?
A :We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price,
please tell us in your email so that we will regard you inquiry priority.
Q :What is your term of delivery?
A :For small orders, we will send the goods by International Express like HK Fedex, DHL, or UPS. usually it
takes about 7 work days to arrive.If big quantity we will ship by Ocean transportation, it takes one month to
arrive.You can also select shipping by Air, but freight charge will be more expensive.
Q :What about the lead time for the mass production?
A :Honestly, it depends on the order quantity and the season you place the order.
Product Tags:
|
|
800 - 2100 Mhz Indoor Omnidirectional 2DBi IPEX / UFL Connector Rubber Antenna Images
|
